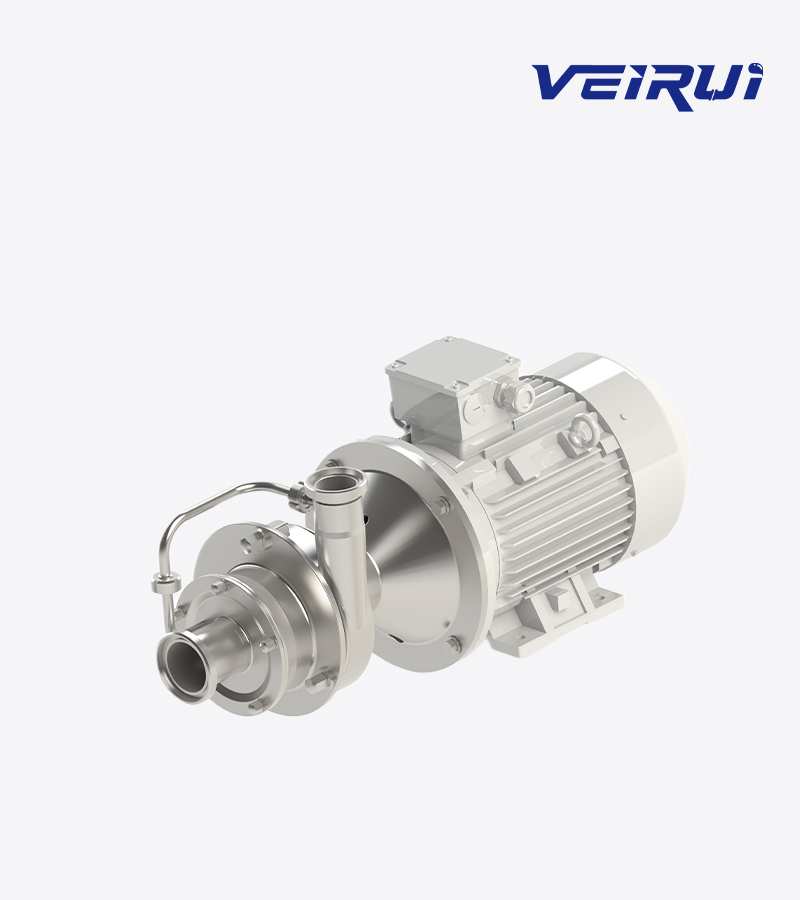

Veirui Vortex Self-Priming Pump

This vortex self-priming centrifugal pump features a meticulously designed vortex impeller that conforms to fluid dynamics.Combined with the eccentric design of the first-stage pump chamber,it generates a powerful self-priming force.Furthermore,as the fluid passes through the second-stage centrifugal impeller and pump chamber,it delivers a high discharge pressure.It is particularly suitable for self-priming applications requiring high flow rates and high head.
  • Flow Range 0-95m³/h
  • Maximum Head80m
  • Viscosity of Pumped MaterialMaximum 800 cP
Product Introduction
Product Features
Product Parameters

This vortex self-priming centrifugal pump features a meticulously designed vortex impeller that conforms to fluid dynamics.Combined with the eccentric design of the first-stage pump chamber,it generates a powerful self-priming force.Furthermore, as the fluid passes through the second-stage centrifugal impeller and pump chamber,it delivers a high discharge pressure.It is particularly suitable for self-priming applications requiring high flow rates and high head.

·Capable of handling large volumes of gas-containing liquids

Suitable for negative pressure applications and tank purging

CIP return pump

Low noise

Minimum wall thickness of 6 mm , robust and durable

High efficiency and energy savings

Maximum head: 8 bar(3500 rpm)

Maximum flow rate : 95 m³/h(3500 rpm)

Maximum operating temperature : 150°C

Capable of handling products with viscosities up to 800 cP

Single mechanical seal / Double mechanical seal

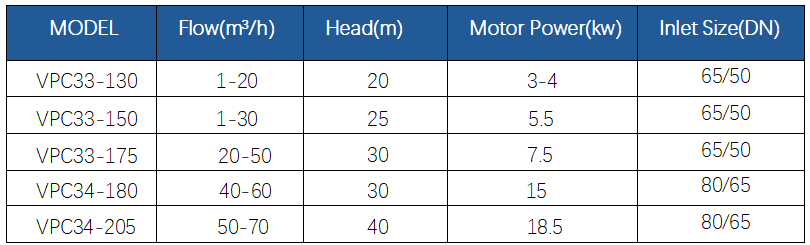

Veirui Vortex Self-Priming Pump(images 1)
