Veirui Sanitary Rotary Lobe Pump

The Veirui sanitary Rotary Lobe Pump is a positive displacement pump specifically designed for hygiene-sensitive industries such as food, pharmaceuticals, and biotechnology.All components in contact with the medium are manufactured from 316L/1.4404 stainless steel,and the pump ensures high cleanliness through a dead-space-free design and mirror-finish polishing (surface roughness Ra ≤ 0.4 μm).With all-metal flow paths, precise clearance control,and a modular maintenance design,the sanitary metal Rotary Lobe Pump has become a core piece of equipment for material transfer in industries with strict hygiene standards.
Product Center Veirui Rotary Lobe Pump
  • Flow Range0-86m³/h
  • Maximum Pressure 1.2Mp
  • Viscosity of Pumped MaterialMaximum 1,000,000 cP
Consulting service
Add to list
Product Introduction
Product Features
Product Parameters

The Veirui sanitary Rotary Lobe Pump is a positive displacement pump specifically designed for hygiene-sensitive industries such as food, pharmaceuticals,and biotechnology. All components in contact with the medium are manufactured from 316L/1.4404 stainless steel,and the pump ensures high cleanliness through a dead-space-free design and mirror-finish polishing (surface roughness Ra ≤ 0.4 μm).With all-metal flow paths,precise clearance control,and a modular maintenance design,the sanitary metal rotor pump has become a core pumping solution in industries with stringent hygiene standards.

Discharge pressure up to 12 bar

Flow rate up to 50 m³/h

Capable of handling products with viscosities up to 100,000 cps

Fully compatible with CIP/SIP

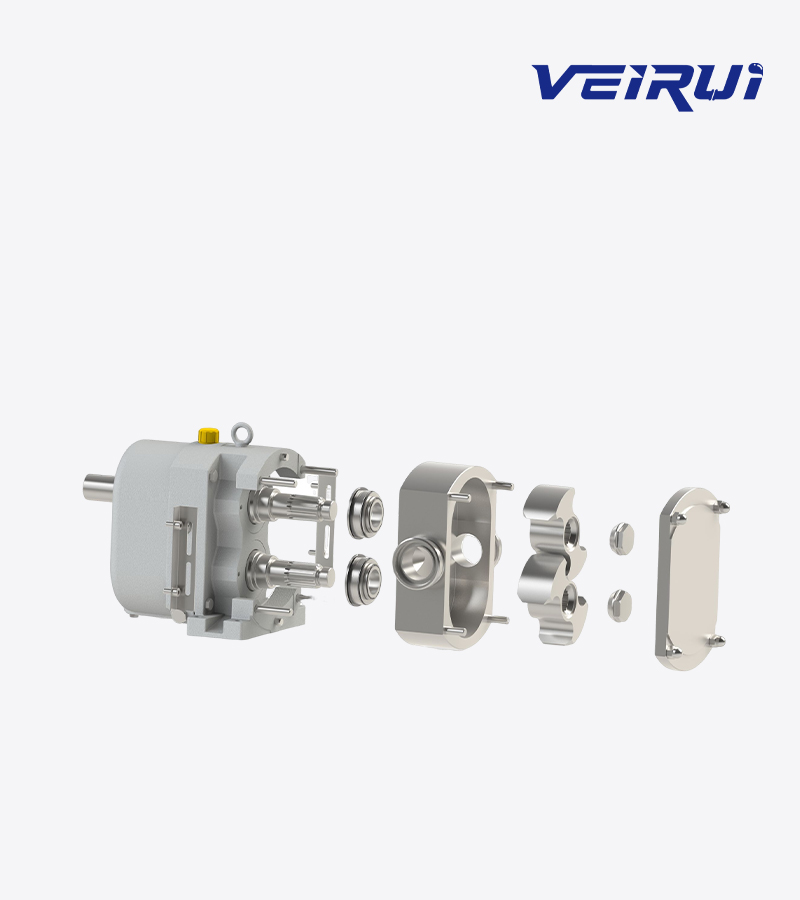

Modular design for easy assembly, disassembly, and maintenance

Bidirectional flow

Low noise

Pump housing can be completely drained

Optional insulation jacket

Customizable configurations

Standard polishing:Ra 0.8,optional:Ra 0.6, Ra 0.4, electrolytic polishing Ra 0.4

Standard material:316L,Custom materials:2205 duplex steel,904L,titanium, Hastelloy,PTFE plastic,etc.

Mechanical seals:Single mechanical seal, double mechanical seal

Seal materials:EPDM,FKM,perfluoroether, fluorinated rubber…

Optional configurations:Pump cover insulation jacket,pump housing insulation jacket,bottom drain for pump cover

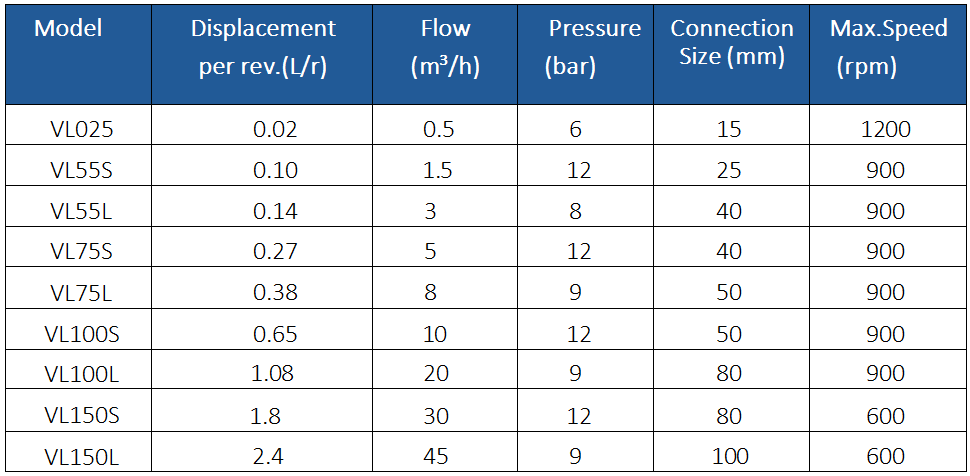

Veirui Sanitary Rotary Lobe Pump（images 1）
