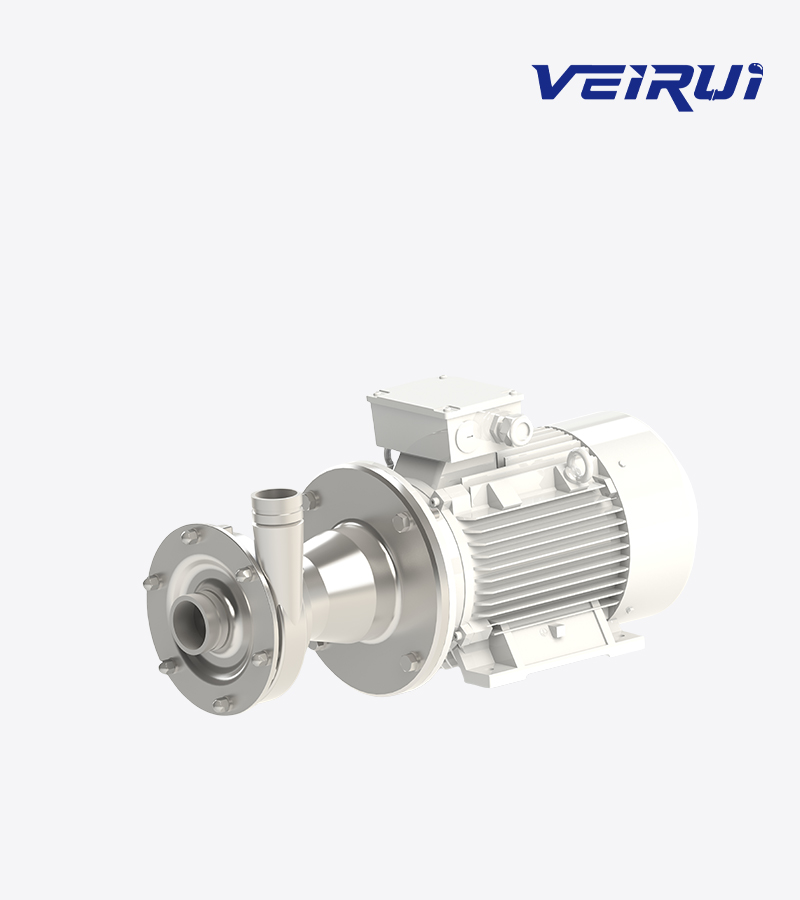

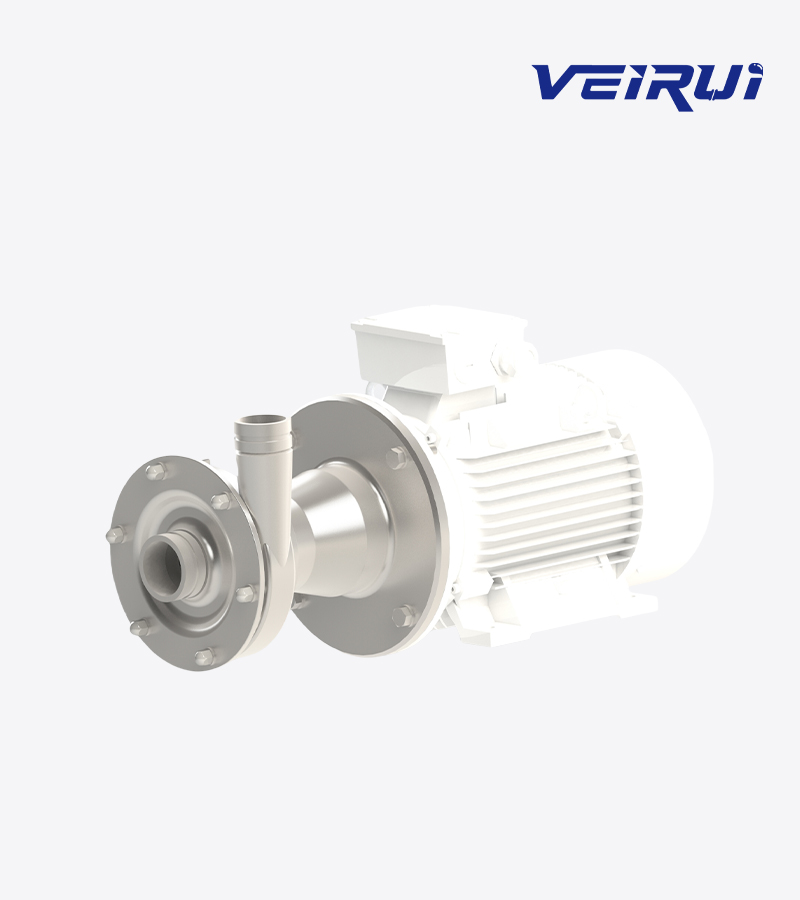

Veirui Homogenizing Cutting Pump

The homogenizing cutting pump is a highly efficient device that integrates mixing,dispersion,crushing,dissolution,refinement,homogenization,and emulsification.Its main working components consist of a stator and a rotor.Under the centrifugal force and hydraulic pressure generated by the rapidly rotating rotor,the stator subjects the material to a combination of intense shearing,centrifugal compression,impact crushing, fluid layer friction,and turbulent mixing.This process instantly and uniformly disperses and emulsifies various immiscible media,including solid,liquid,and gas phases.High-precision machining, combined with bearing fixation,maintains the clearance within the pump chamber at less than 0.2 mm,preventing backflow and creating a vacuum-sealed loop.
Product Center Veirui Cutting Pump
  • Flow Range0-100m³/h
  • Minimum particle size2-5um
  • Viscosity of Pumped MaterialMaximum 100000 cP
Consulting service
Add to list
Product Introduction
Product Features
Product Parameters

The homogenizing cutting pump is a highly efficient device that integrates mixing, dispersion, crushing,dissolution, fine grinding,homogenization,and emulsification.Its main working components consist of a stator and a rotor.Under the centrifugal force and hydraulic pressure generated by the rapidly rotating rotor,the stator subjects the material to a combination of intense shearing,centrifugal compression,impact crushing,fluid-layer friction,and turbulent mixing.This process instantly and uniformly disperses and emulsifies various immiscible media,including solid,liquid,and gaseous phases.

6 models

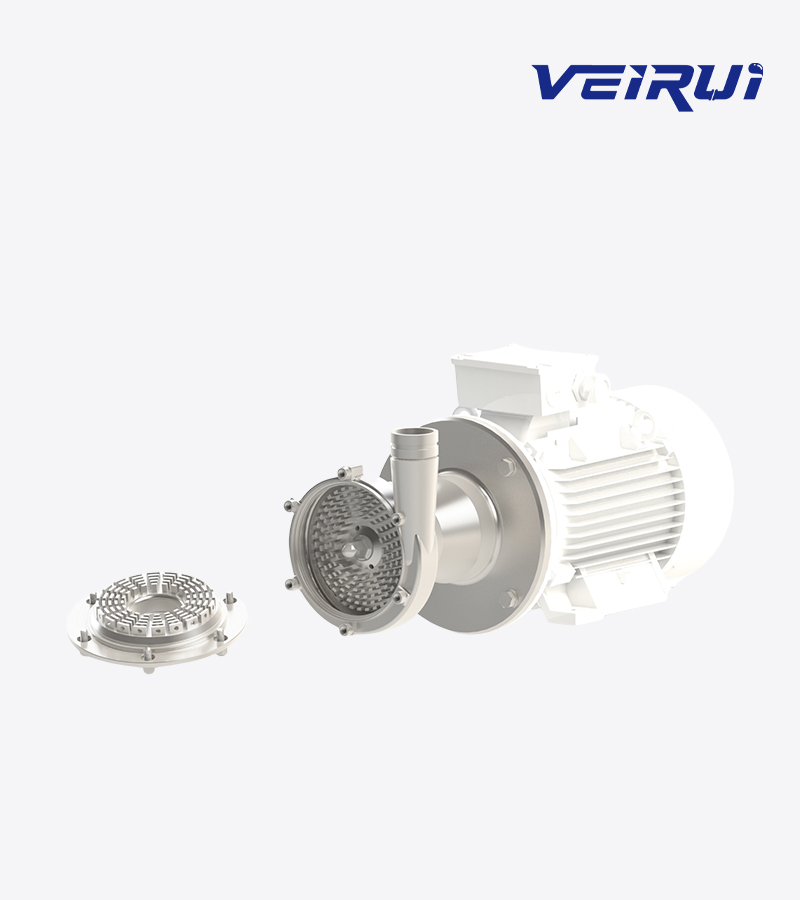

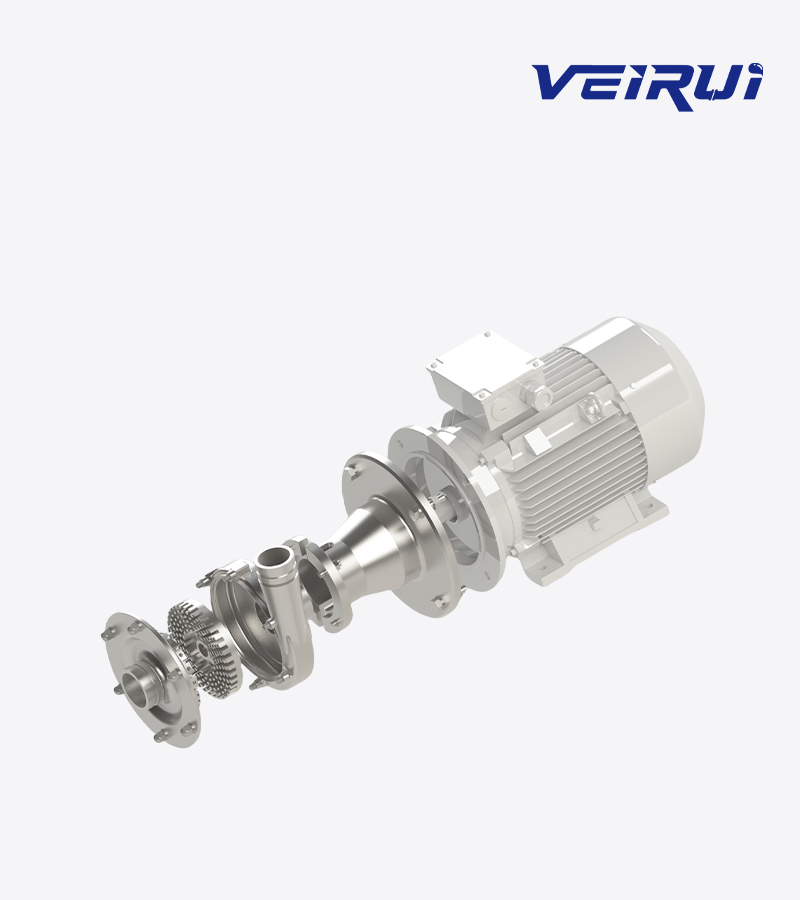

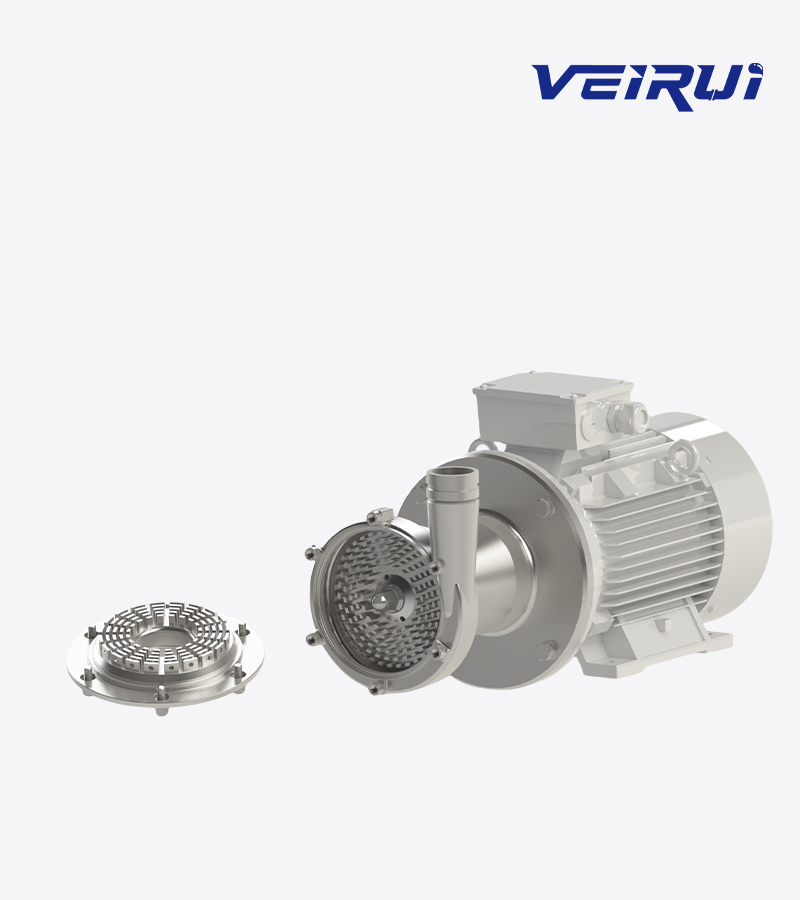

25 types of cutting and mixing stator-rotor assemblies

Minimum particle size : 2–5 μm

Maximum flow rate : 100 m³/h

Mixing capable of viscosities up to 100,000 cP

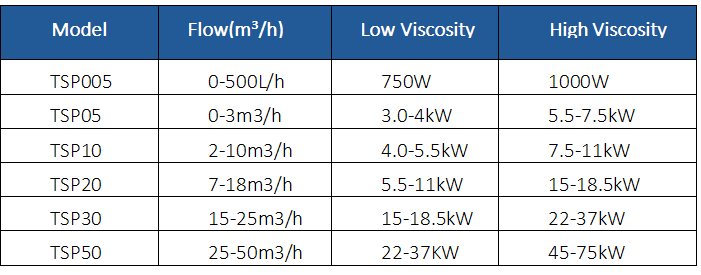

Veirui Homogenizing Cutting Pump（images 1）
