Veirui Rubber Rotary Lobe Pump

Rubber Cam Rotary Lobe Pump is a type of pump with its rotor surfaces coated with a layer of elastic rubber(or other elastomers).It features stable operation,low shear,strong self-priming capability and high volumetric efficiency,making it especially suitable for conveying viscous liquids containing solid particles and fibers.
  • Flow Range 0-300m³/h
  • Maximum Pressure3.2 MPa
  • Viscosity of Pumped MaterialMaximum 1,000,000 cP
Product Introduction
Product Features
Product Parameters

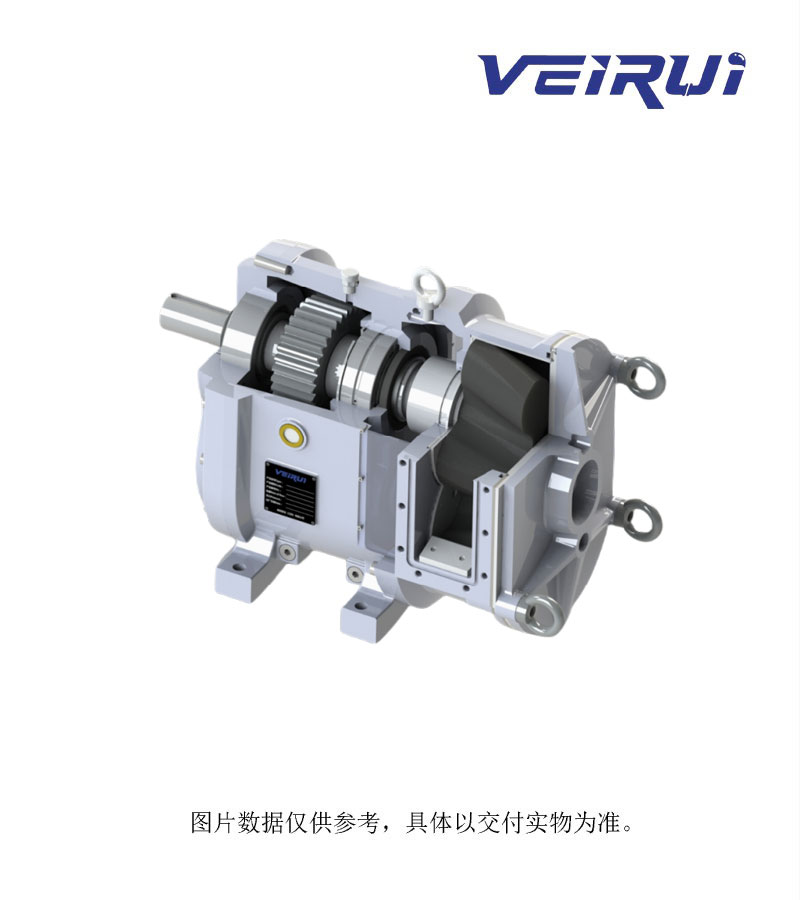

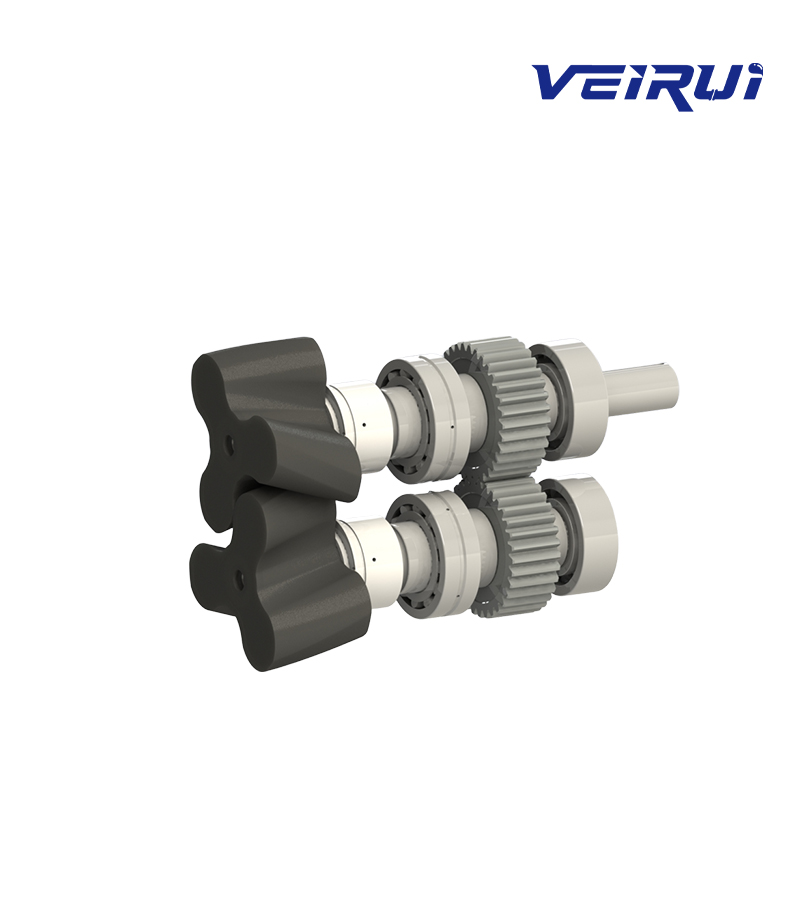

Veirui Rubber Cam Rotary Lobe Pumps are pumps featuring a layer of elastic rubber (or other elastomers) coated onto the surface of the rotors.They are characterized by smooth operation,low shear,strong self-priming capability,and high volumetric efficiency,making them particularly suitable for conveying viscous liquids containing solid particles and fibers.

Thanks to its optimized structural design featuring elastomer-coated rotors,the Veirui Rubber Cam Rotary Lobe Pump excels in wear resistancecorrosion resistance,tear resistance,resistance to foreign object damage,self-priming capability,and particle passage.It is one of the ideal choices for handling complex,viscous,solid-laden,or shear-sensitive media.It is particularly well-suited for applications in industries with high hygiene and reliability requirements,such as environmental protection,chemical processing,mining,and lithium battery manufacturing.

9 models cover a flow range of 0–500 m³/h

Discharge pressure : 0–1.2 MPa

Viscosity of Pumped Material:Maximum 1,000,000 cP

VisCapable of handling any medium within a temperature range of 0–200°C

Excellent particle passage capability, with a maximum particle size of 70 mm

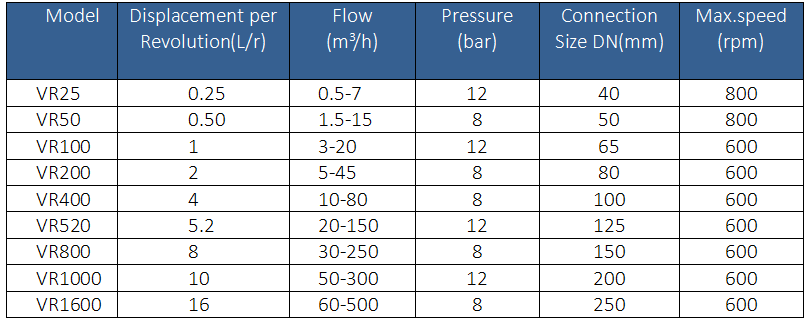

Veirui Rubber Rotary Lobe Pump(images 1)
